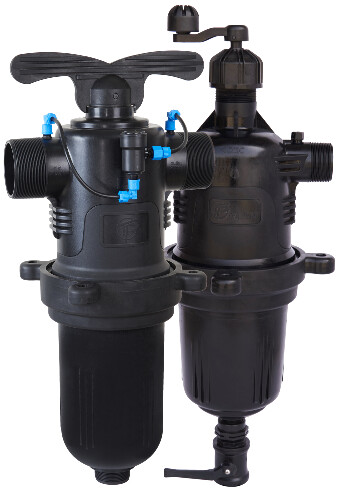

The Semi-Automatic Screen/Disc Filter TDS Series by TAVLIT offers a cutting-edge water filtration solution designed for low flow rates up to 20 m³/h. This innovative filter combines the benefits of two distinct cleaning components:
Disc Filtration: Utilizing grooved plastic discs that stack on a telescopic spine, it delivers fine filtration (up to 20-425 microns) and can be flushed efficiently with minimal water consumption.
Screen Filtration: Featuring high-quality INOX 316 stainless steel mesh, it provides robust, coarse filtration, ideal for capturing larger debris and particulate matter.

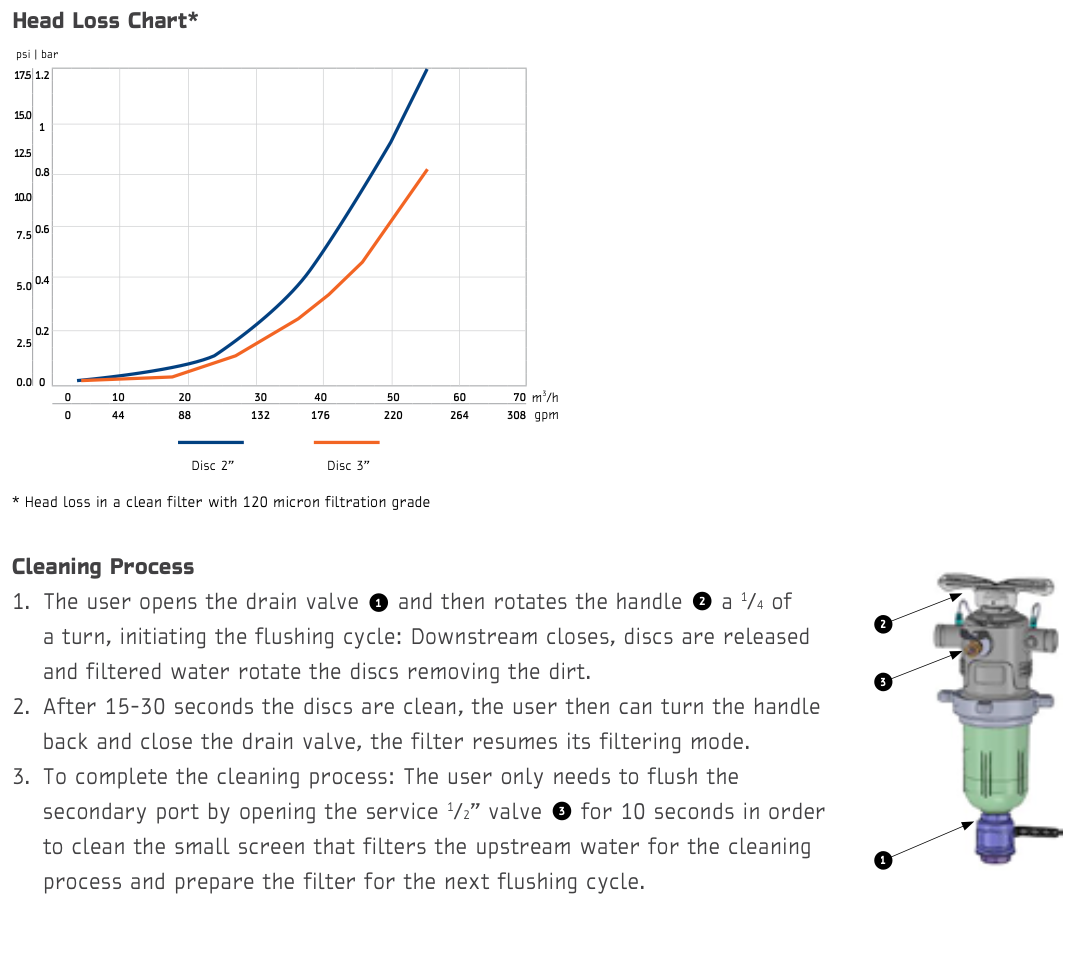

Both cleaning methods are integrated into one automatic system. When the head loss reaches a preset value (typically 0.5-0.7 bar), the controller initiates a flushing cycle—closing the inlet, opening the drain, and redirecting water through the bypass screen. Specially designed venturi devices inject air to create an effective air-water mixture that cleans the filter elements without interrupting the water supply.
This versatile system is ideal for agriculture, turf management, greenhouse hydroponics, and industrial water treatment. It is designed for users who demand uninterrupted irrigation even during maintenance, with customizable options to suit specific water quality challenges.
✔ Dual Filtration Options:
- Disc Filtration: Fine, effective cleaning via telescopic self-cleaning discs.
- Screen Filtration: Robust INOX 316 mesh for capturing larger particles.
✔ Uninterrupted Operation: Water flow remains active during the flushing cycle, ensuring continuous irrigation.
✔ Efficient Automatic Flushing: Patented venturi-based flushing reduces water usage and shortens cleaning time.
✔ User-Friendly Maintenance: The system features a manual drain valve and simple rotation of a handle to trigger flushing—no disassembly required.
✔ Versatile & Customizable: Available in multiple sizes (2” and 3” models) and adaptable to various connection types (BSP, NPT, flange, Victaulic).
✔ Robust Construction: Made from durable, UV-resistant polymers (nylon, polypropylene) and EPDM seals for long-lasting performance under harsh conditions.
Specification | Details |
---|---|
Inlet/Outlet Size | 2" Male Thread / Victaulic |
Max. Operating Pressure | 10 bar (140 psi) |
Minimum Flushing Pressure | 1.5 bar |
Max. Flow Rate | 20 m³/h (88 gpm) |
Backflush Flow Rate | 6.5 m³/h at 1.5 bar |
Filtration Grade Options | 20-425 microns (800-40 mesh) |
Available Models: | 2" and 3" (with both disc and screen options) |
Temperature Range | Up to 60°C (140°F) |
Construction Materials | Nylon, Polypropylene, EPDM Seals |
Cleaning Method | Automatic flushing via rotating suction nozzles with air injection (Venturi) |
🌱 Drip Irrigation: Protects emitters and dosing systems from clogging.
💧 Sprinkler & Turf Irrigation: Ensures uniform water distribution for lawns, sports fields, and landscapes.
🏡 Greenhouses & Hydroponics: Delivers clean water to maintain optimal growth conditions.
🏭 Industrial Water Treatment: Acts as a primary or backup filter in commercial and industrial applications.
🔄 Continuous Operation: Ideal when water supply must remain uninterrupted during cleaning.
Filter Disk:
FIlter Screen:
Engineered to the highest standards with advanced TAVLIT technology, this filter ensures long-lasting durability and maximum efficiency in demanding agricultural and industrial environments.
